ICON 2005+ Toyota Tacoma Tubular Upper Control Arm Delta Joint Kit | 58450DJ

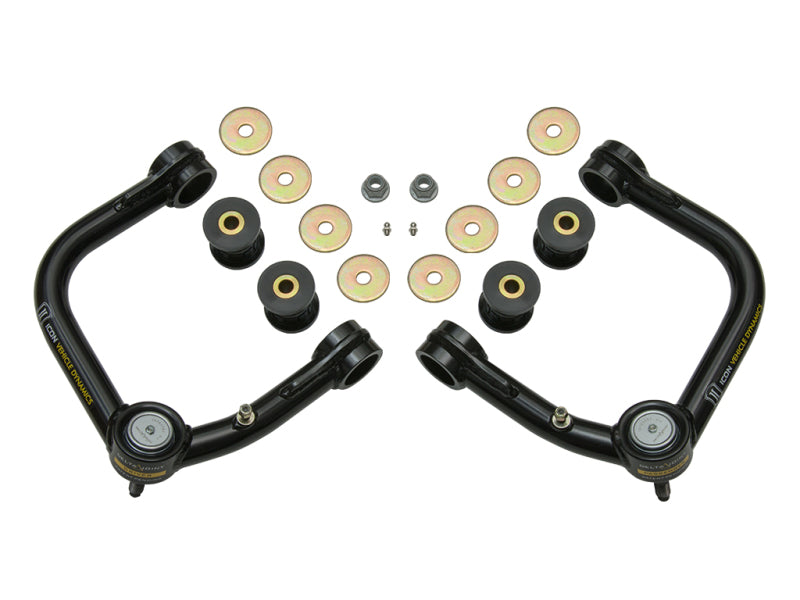

ICON Vehicle Dynamics Delta Joint Tubular Front Upper Control Arm Kit

2005–2023 Toyota Tacoma

Part #: 58450DJ

Overview 📄

Take the front suspension of your 2005–2023 Toyota Tacoma to a higher standard with the ICON Vehicle Dynamics Delta Joint Tubular Front Upper Control Arm Kit. Designed for drivers who expect real-world durability, precise alignment, and improved suspension performance, this kit replaces the factory upper control arms with a far stronger and more capable tubular design.

Each arm is constructed from CNC-bent 1026 DOM steel tubing and finished in a durable semi-gloss black powder coat to resist corrosion and trail abuse. ICON engineers built in caster correction to restore proper alignment on lifted trucks, improving straight-line stability, steering return, and overall confidence behind the wheel.

One of the biggest advantages of ICON tubular upper control arms is increased suspension articulation. When paired with extended travel coilovers, these arms allow for more usable wheel travel, which translates directly into better ride quality, improved off-road control, and more predictable handling on uneven terrain.

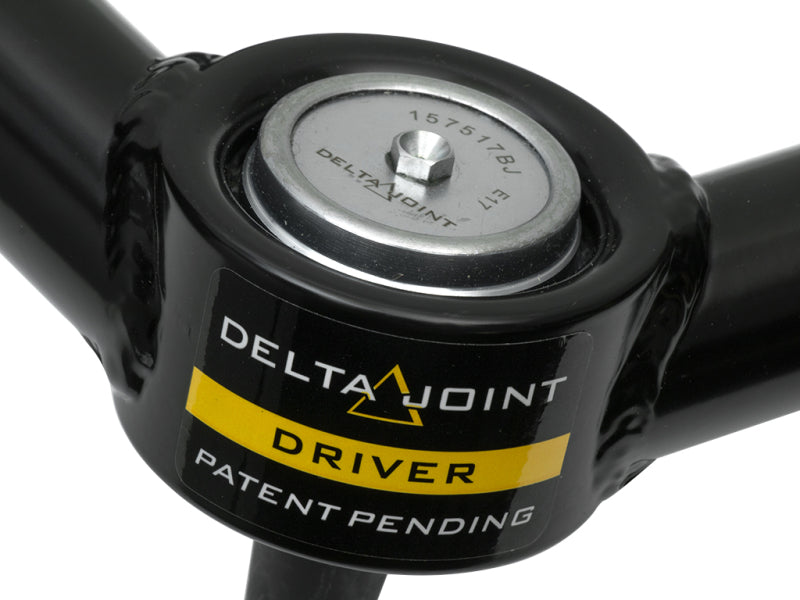

At the heart of the system is ICON’s patented Delta Joint. This joint was developed to solve the shortcomings of traditional uniballs in daily-driven trucks while still delivering the articulation needed for aggressive suspension setups.

What Makes the Delta Joint Different ❓

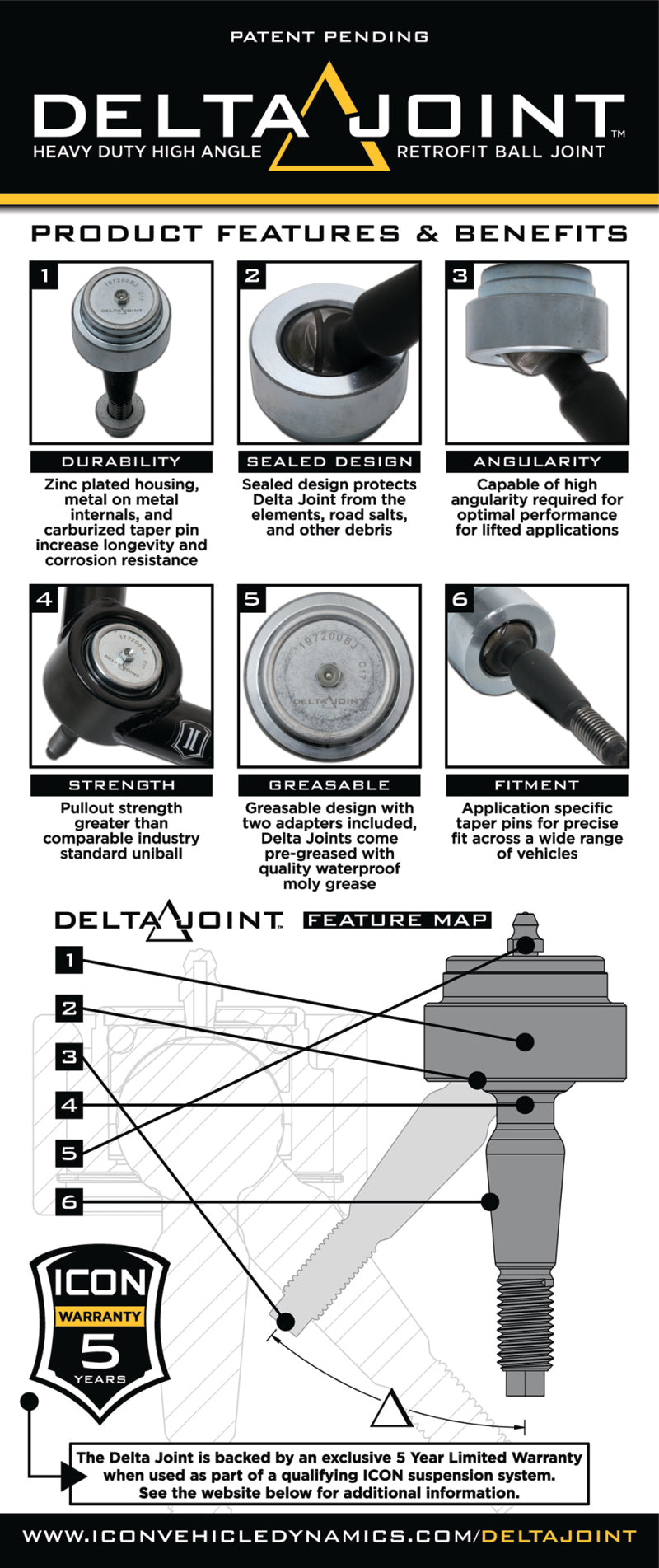

ICON’s Delta Joint blends the best characteristics of a traditional ball joint and a uniball into one heavy-duty, serviceable design. Unlike open uniballs that are exposed to dirt, water, and road debris, the Delta Joint features a zinc-plated housing for corrosion resistance and a robust grease seal that protects the internal components from the elements.

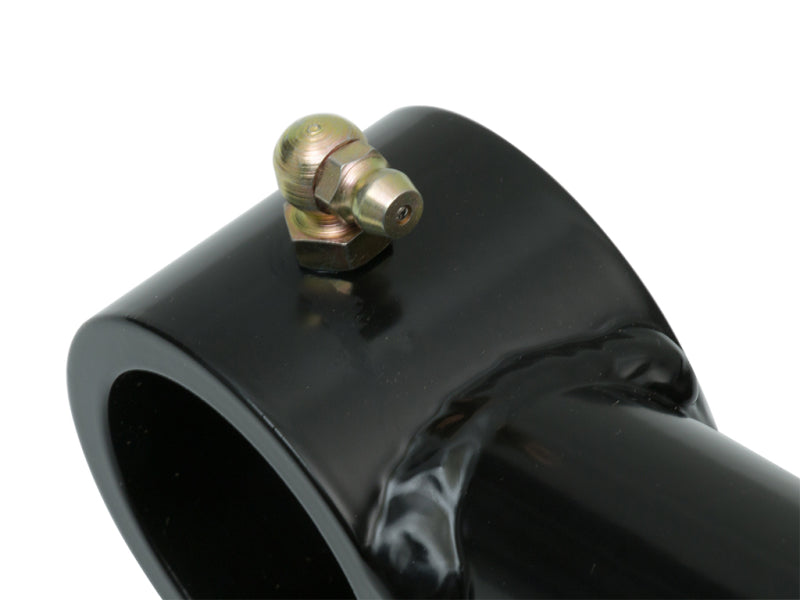

The internal metal-on-metal construction provides exceptional strength, while the greaseable design allows for long service life and quiet, noise-free operation. Compared to a standard ball joint, the Delta Joint offers greater angularity. Compared to a uniball, it offers dramatically improved durability and longevity for daily-driven trucks that see real mileage.

This design makes the Delta Joint ideal for Tacoma owners who want off-road capability without sacrificing reliability, comfort, or long-term maintenance.

Why Upgrade to Tubular Front Upper Control Arms 🔍

Upgrading the factory upper control arms is one of the most important steps when lifting a Tacoma. Stock arms are limited in articulation and alignment range, especially once suspension height is increased.

The ICON Delta Joint tubular upper control arms provide:

• Improved caster and alignment on lifted vehicles
• Increased wheel travel and suspension articulation
• Stronger construction than factory stamped arms
• Better handling and steering feel on and off-road
• Long-term durability for daily driving and trail use

Whether your Tacoma is a daily driver, an overland rig, or a weekend trail truck, these control arms help unlock the full potential of your suspension system.

Key Features 🔑

• Patented ICON Delta Joint (U.S. Patent 10,731,700)
• CNC-bent 1026 DOM steel tubular construction
• Built-in caster correction for lifted applications
• Serviceable dual-stage bushings
• CNC-machined bushing housings and sleeves
• Semi-gloss black powder coat finish
• Designed for increased wheel travel with extended travel coilovers

Technical Specifications 🔧

• Brand: ICON Vehicle Dynamics
• UPC: 840103403649
• Proxy Number: 58450
• Shipping Weight: 25.0 lb
• Shipping Dimensions:
• Length: 16.00 in
• Width: 12.00 in
• Depth: 8.00 in

Wheel and Tire Recommendations 🛞

• OEM Wheels and Tires: Compatible
• Recommended Aftermarket Wheels:
• 17x8.5 with 4.75 in backspacing / 0 mm offset
• 18x9 with 5.00 in backspacing / 0 mm offset
• 20x9 with 5.00 in backspacing / 0 mm offset
• Recommended Tire Size: Up to 33x11.50 in
• Larger tires may fit with trimming and additional modifications

Important Technical Notes 📄

• Only compatible with OE steering knuckles
• Do not install with aftermarket spindles
• Will not fit 2005–2015 2WD 5-lug Tacoma models
• Lift compatibility:
• 2005–2015 Tacoma: 2.0–3.5 in front lift
• 2016–2023 Tacoma: 1.25–2.75 in front lift

Vehicle Fitment Summary 📐

Compatible with a wide range of Toyota Tacoma trims from 2005–2023, including SR, SR5, Sport, TRD Sport, TRD Off-Road, TRD Pro, Limited, Trail, PreRunner, and select international Hilux applications. Designed for front upper position with OE steering knuckles and 0 mm offset aftermarket wheels recommended.

In Stock and Ready to Ship 📦

These ICON Delta Joint Tubular Front Upper Control Arms are in stock and ship same day, so you can get your Tacoma back on the road or trail without delays. If you are building a properly aligned, high-performing suspension setup, this upgrade is a critical component that delivers strength, reliability, and proven ICON engineering.
