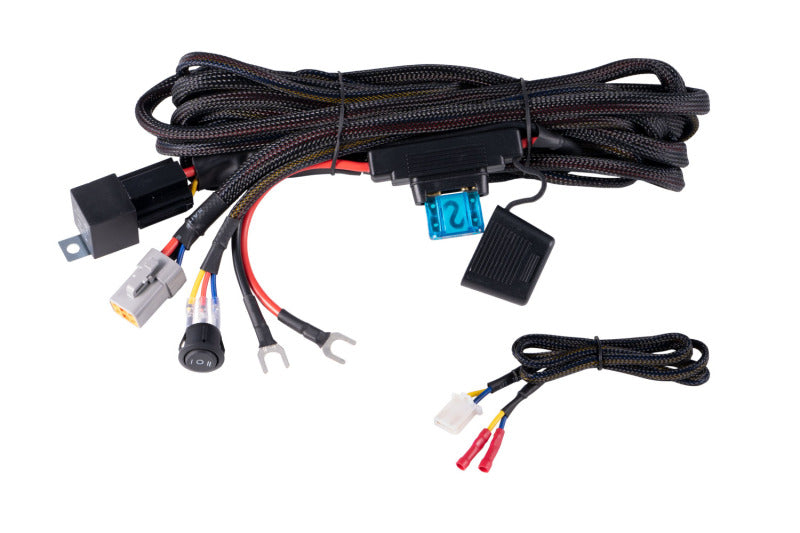

Diode Dynamics Ultra Heavy Duty Single Output 4-Pin Wiring Harness

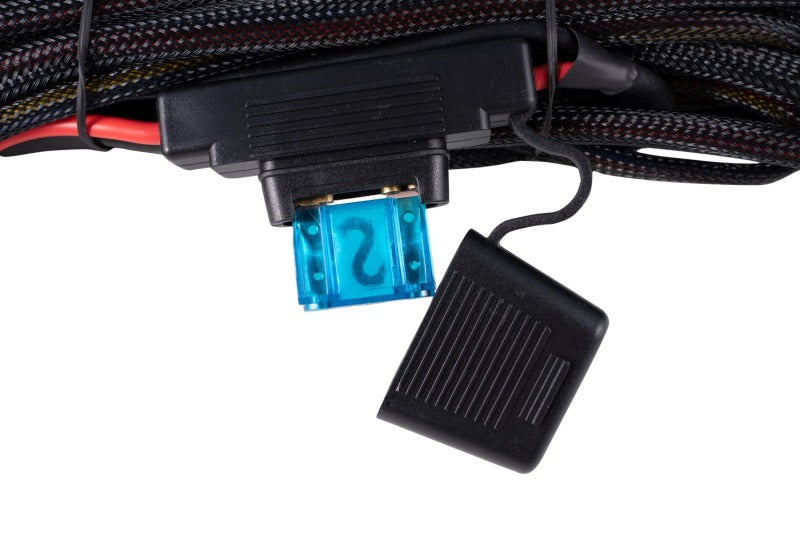

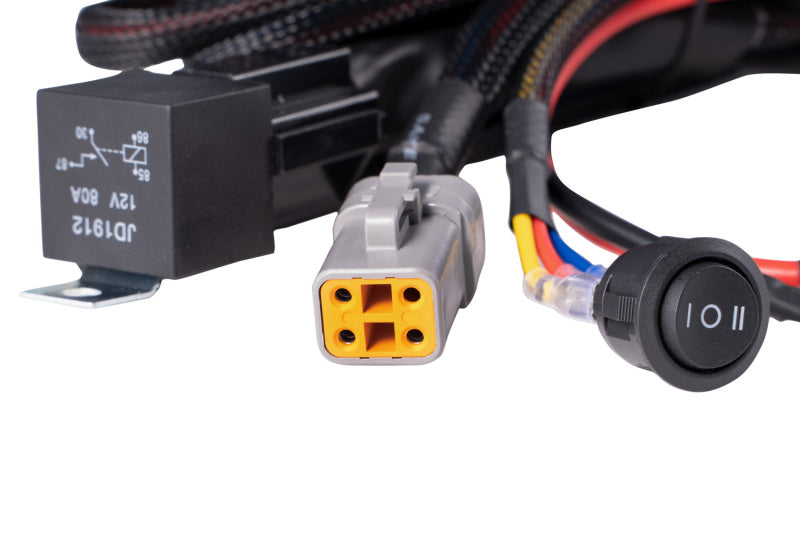

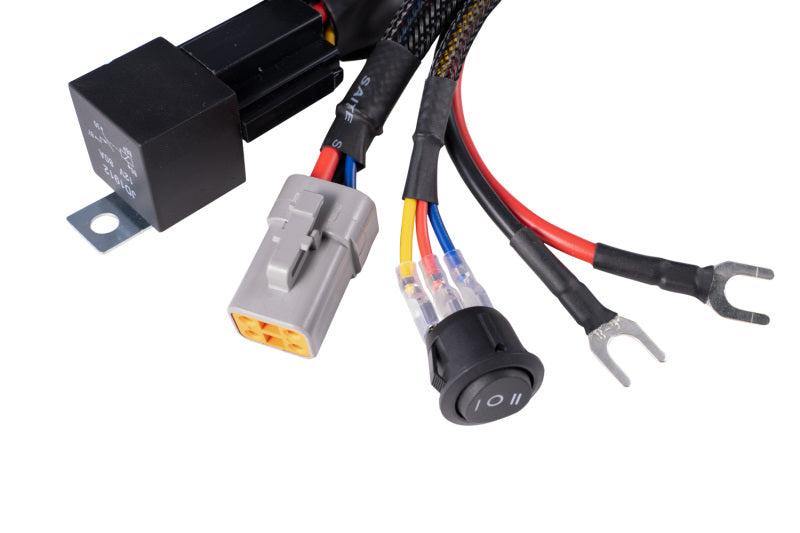

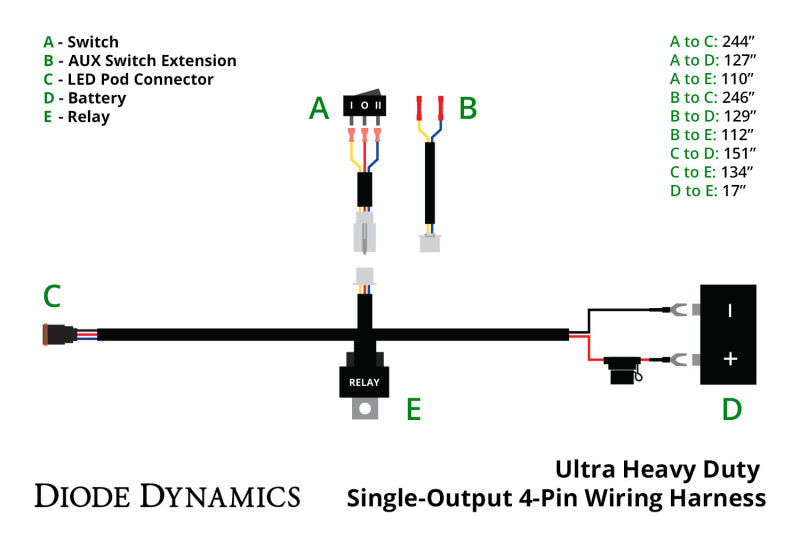

Features Powers 5-8 Pod SS5 CrossLink Pro Lightbars. Connects directly to the battery to power your LED pods. High capacity 10AWG wiring. Single Deutsch DT-P output connector. 60A waterproof fuse, and 80A 12V relay to safeguard the electrical systems in your pods. Overview Stage Series. This harness has been designed specifically to safely power CrossLink Pro Lightbars with five (5) or more SS5 Pro LED Pods. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. You have the option to control your pods using the included three-way switch to toggle between the backlight, off, and the main beam, or control them through your Auxiliary Switch Bank with the included adapter. This harness uses high capacity 10AWG wiring and a Deutsch DT-P connector for simple plug-and-play installation. This harness safely powers up to 45A of auxiliary lamps. The SS5 Pro draws 6.7A per pod. Compatibility. Please note that this harness has a DT-P size output connector. This is intended to connect to a corresponding Ultra-Heavy-Duty (UHD) SS5 Splitter harness, to build a multi-pod lightbar. This connector will not plug directly into any LED product offered by Diode Dynamics.
