Rev9 Hyper-Street 3 V2 Coilovers for Audi A7 Sportback (4K8) 2019-2025

Rev9 Hyper-Street 3 V2 Coilovers for Audi A7 Sportback (4K8) 2019-2025

Build your Audi A7 Sportback around a more adjustable suspension package with the Rev9 Hyper-Street 3 V2 coilover kit for Audi A7 Sportback (4K8) 2019-2025. Part RST-AZE-X103_4 offers 32-level damping adjustment and separate ride-height setup, with the front and rear hardware listed in the specifications below. It gives you a useful foundation for choosing a stance and response that suit the vehicle’s wheels, tires, and driving use.

🏎️ A Setup for Your Audi A7 Sportback

On this application, drivetrain and factory suspension equipment deserve as much attention as the model year. Electronic damping, self-leveling systems, and different lower-mount designs can change the parts or additional equipment needed. Confirm those details, choose a usable ride height, and finish the installation with alignment and clearance checks.

🔧 Application-Specific Damper Layout

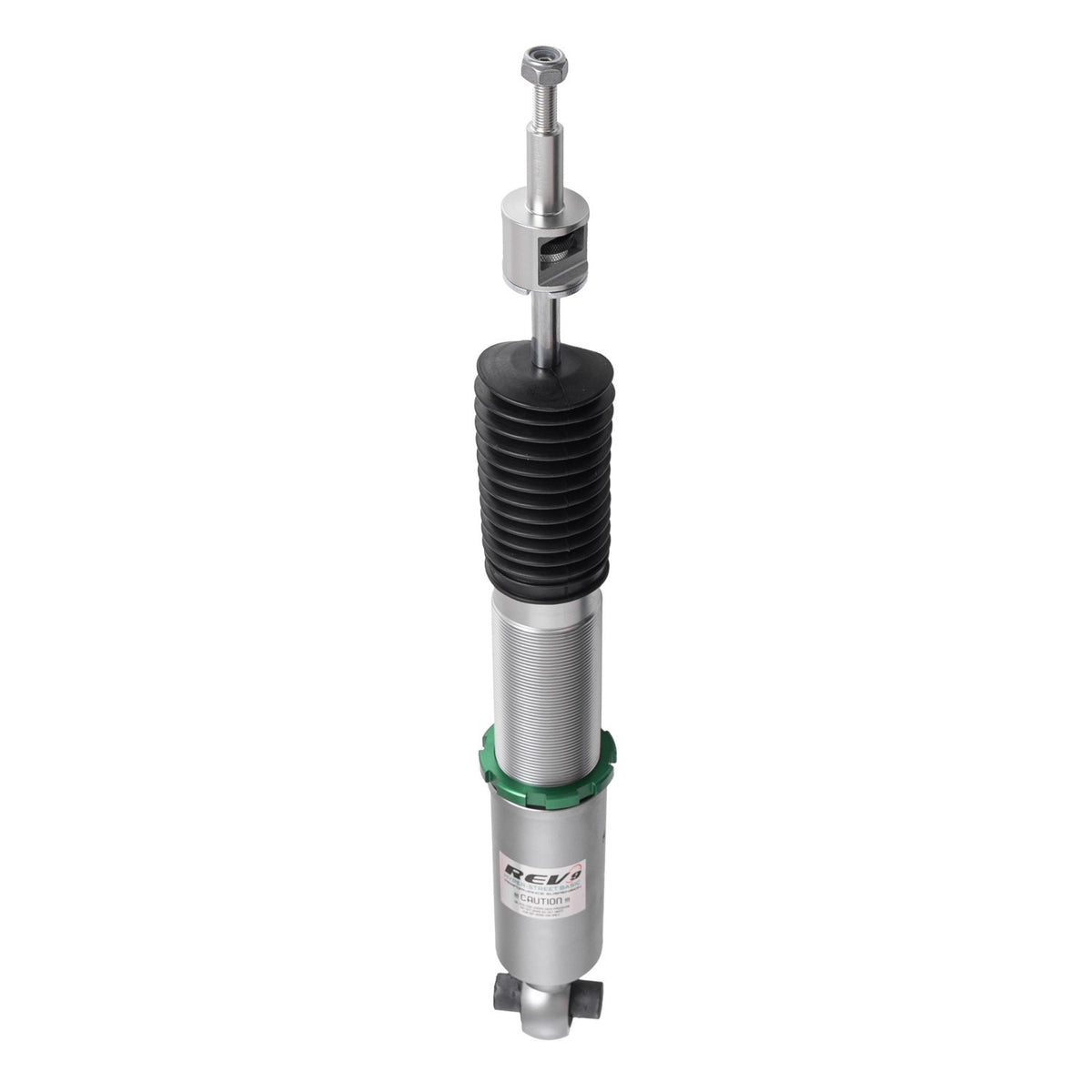

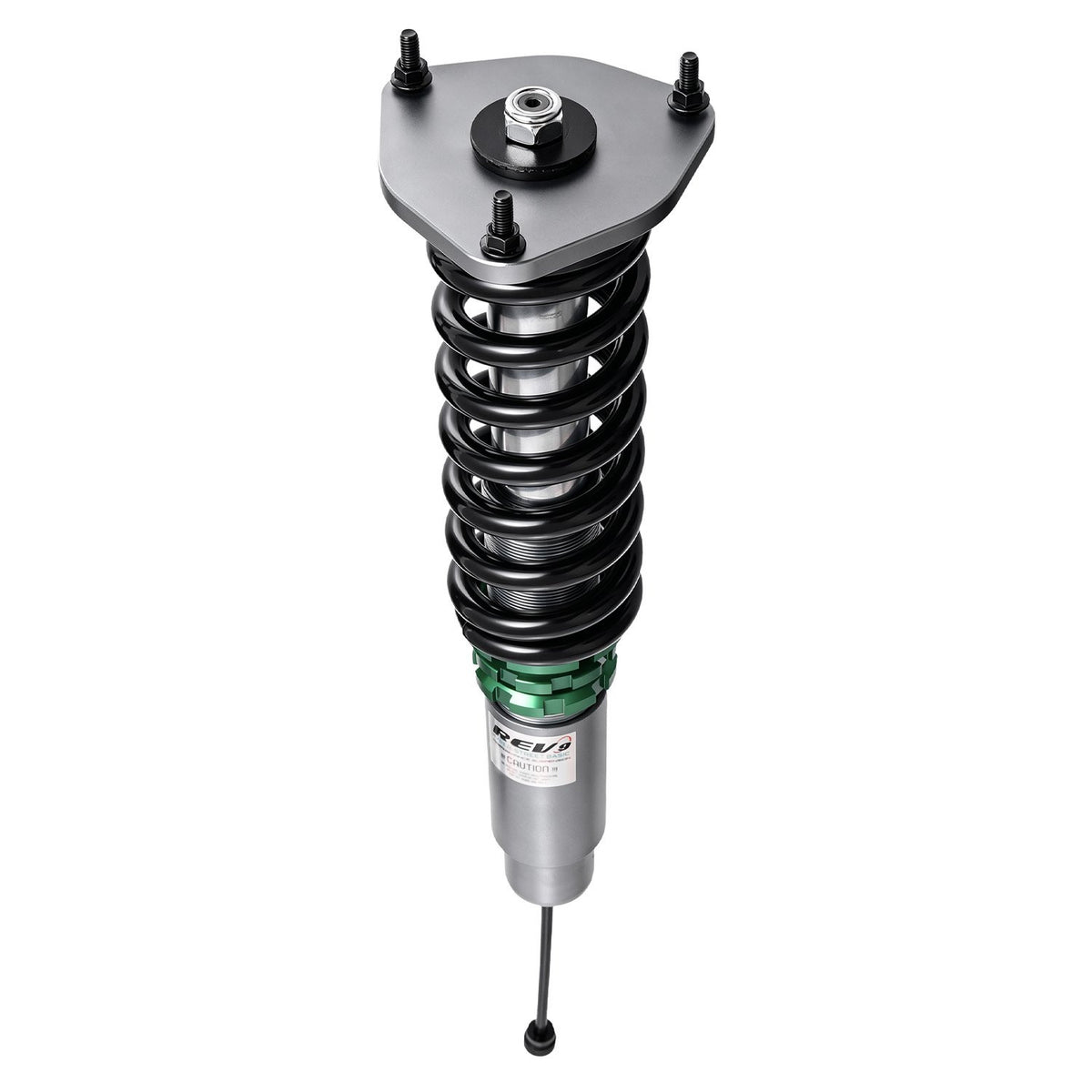

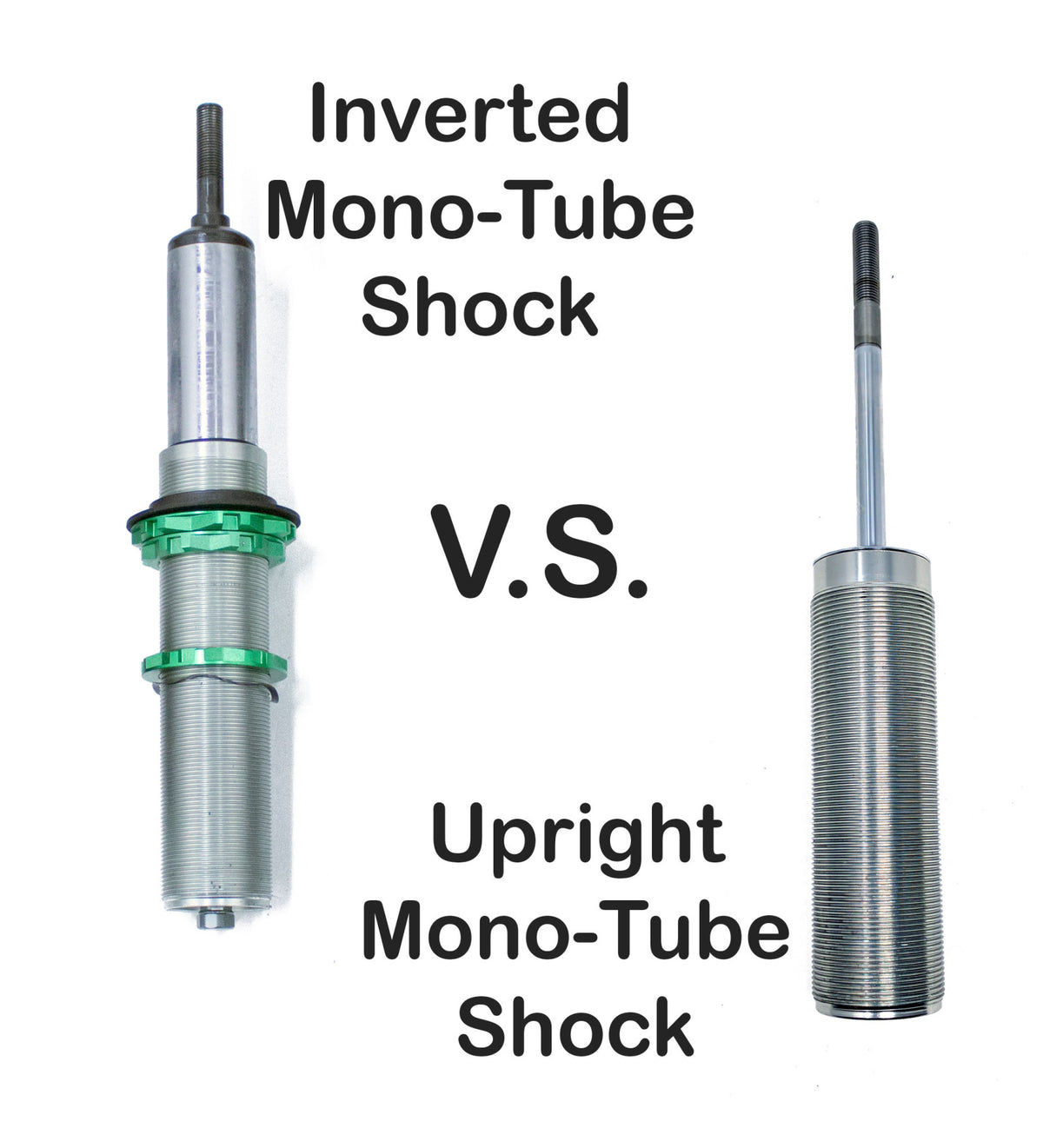

This application uses inverted mono-tube dampers at the front and standard mono-tube dampers at the rear. The inverted layout places the damper body differently from a conventional upright arrangement. Use the actual front and rear specifications when comparing kits, because the construction and mounting details are selected by application.

🎚️ Tune Height and Damping as a Complete System

Establish a usable ride height and the specified spring preload first, then complete the alignment before comparing damping settings. Small, repeatable adjuster changes make it easier to identify the response you prefer. Keep enough travel and clearance for the roads the vehicle uses, and evaluate the setup with consistent tire pressures and normal vehicle load.

🔧 Features and Hardware

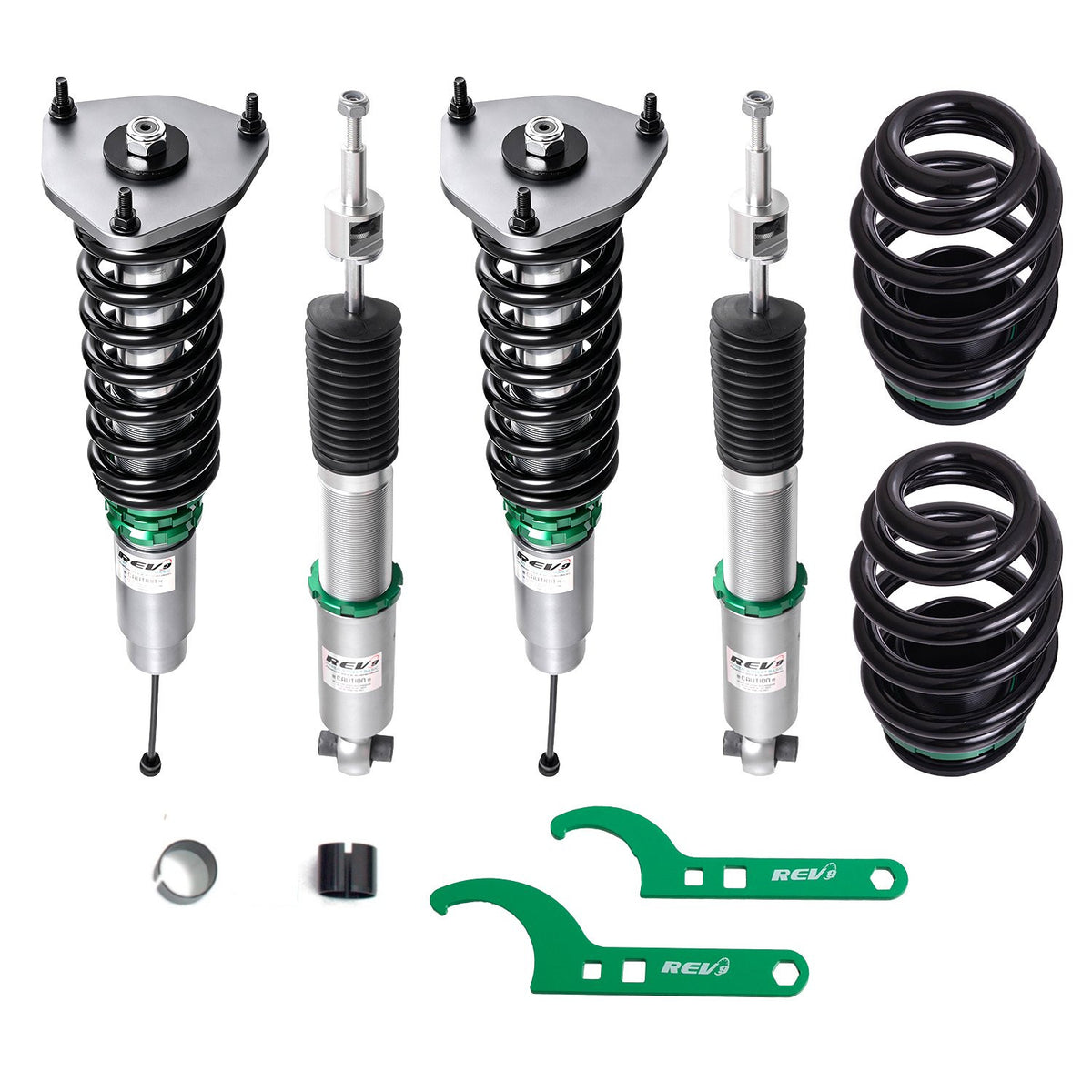

• Hyper-Street 3 V2 coilover suspension package for the listed application.
• 32-level damping adjustment listed for this application.
• Adjustable ride-height setup, independent of the spring-preload setting.
• Application-specific front and rear spring rates and mount details shown below.
• Aluminum adjustment hardware described for the Hyper-Street 3 range.
• Supplied spring rates: 14 kg/mm (784 lbs/in) front and 10 kg/mm (560 lbs/inch) rear.

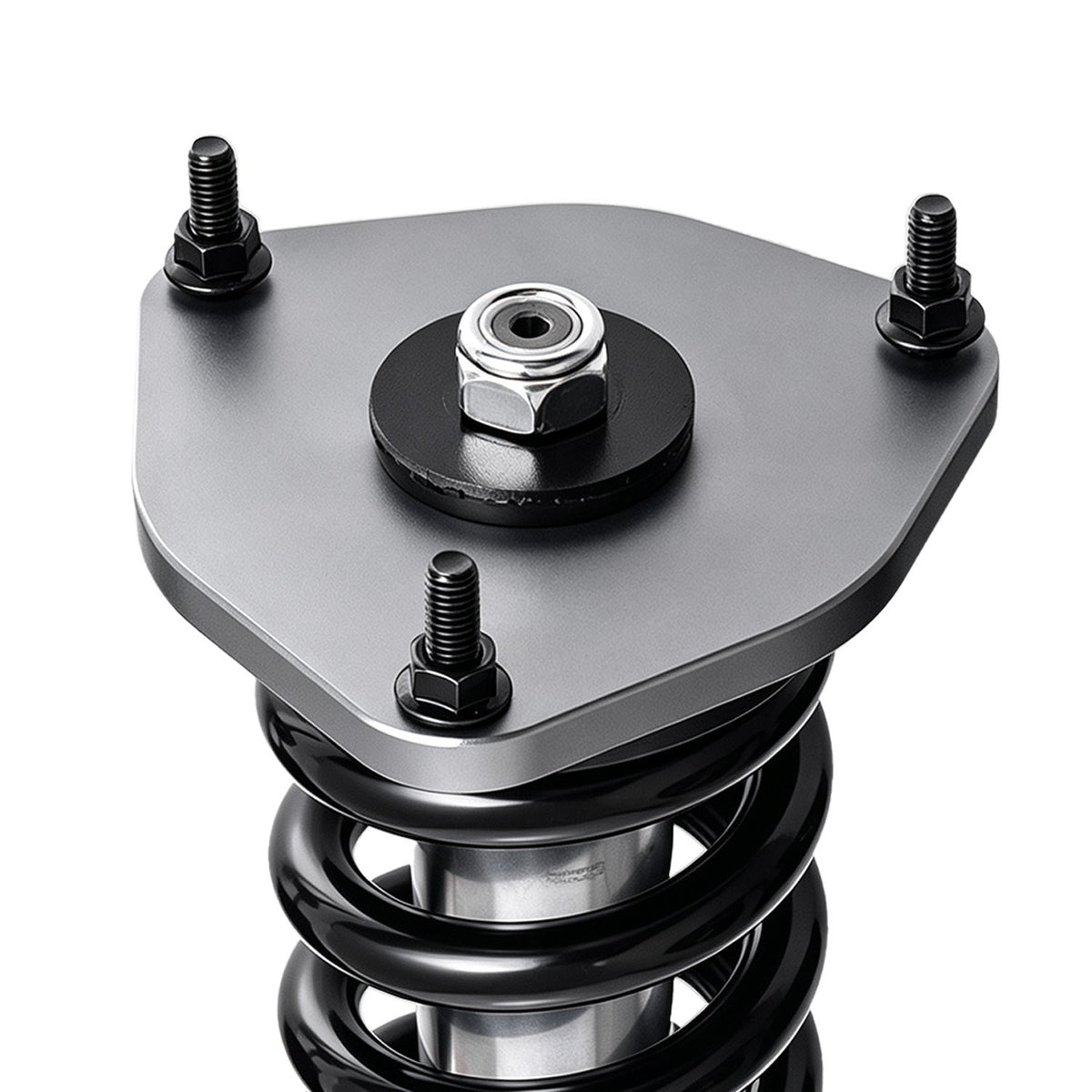

• Front top mount: Yes, Standard Type. Rear top mount: No, Re-use Factory Top Mount.

🔧 Spring and Mount Details for RST-AZE-X103_4

The RST-AZE-X103_4 specification lists 14 kg/mm (784 lbs/in) at the front and 10 kg/mm (560 lbs/inch) at the rear. These are the spring rates supplied for this application, so they are more useful for comparing kits than a general “soft” or “stiff” label. Motion ratio, vehicle weight, tire construction, and damping also affect how the setup feels.

📋 Vehicle Fitment

• 2019 Audi A7 Sportback (4K8)
• 2020 Audi A7 Sportback (4K8)
• 2021 Audi A7 Sportback (4K8)
• 2022 Audi A7 Sportback (4K8)
• 2023 Audi A7 Sportback (4K8)
• 2024 Audi A7 Sportback (4K8)
• 2025 Audi A7 Sportback (4K8)

Manufacturer application: Audi A7 Sportback (4K8) 2019-2025

📌 Application Notes

• Factory electronic dampers may require a compatible cancellation module or application-appropriate coding to address suspension warnings. Additional equipment or services may be needed.

📏 Technical Specifications

🏁 About Rev9 Hyper-Street 3 V2

California-based Rev9 has been serving enthusiasts since 2010. Hyper-Street 3 V2 gives builders another step to consider in the Rev9 range, combining its application-specific inverted-front damper arrangement with 32-level damping adjustment and adjustable ride-height setup. Compare the actual spring rates and mounting hardware below to choose the right package for your Audi A7 Sportback build.

🛡️ One-Year Limited Manufacturer Warranty

Rev9 covers defects in materials and workmanship for one year from the original purchase date. Coverage applies to the original purchaser, is non-transferable, and requires proof of purchase. Manufacturer terms, exclusions, and installation/setup requirements apply. Read Rev9’s full coilover warranty terms.
