Rev9 Hyper-Street 3 V2 Coilovers for Lexus Es350 (GSV10) 2019-2023

Rev9 Hyper-Street 3 V2 Coilovers for Lexus Es350 (GSV10) 2019-2023

Build your Lexus Es350 around a more adjustable suspension package with the Rev9 Hyper-Street 3 V2 coilover kit for Lexus Es350 (GSV10) 2019-2023. Part RST-AZE-X152_3 offers 32-level damping adjustment and separate ride-height setup, with the front and rear hardware listed in the specifications below. It gives you a useful foundation for choosing a stance and response that suit the vehicle’s wheels, tires, and driving use.

🏎️ A Setup for Your Lexus Es350

On this application, drivetrain and factory suspension equipment deserve as much attention as the model year. Electronic damping, self-leveling systems, and different lower-mount designs can change the parts or additional equipment needed. Confirm those details, choose a usable ride height, and finish the installation with alignment and clearance checks.

🔧 Application-Specific Damper Layout

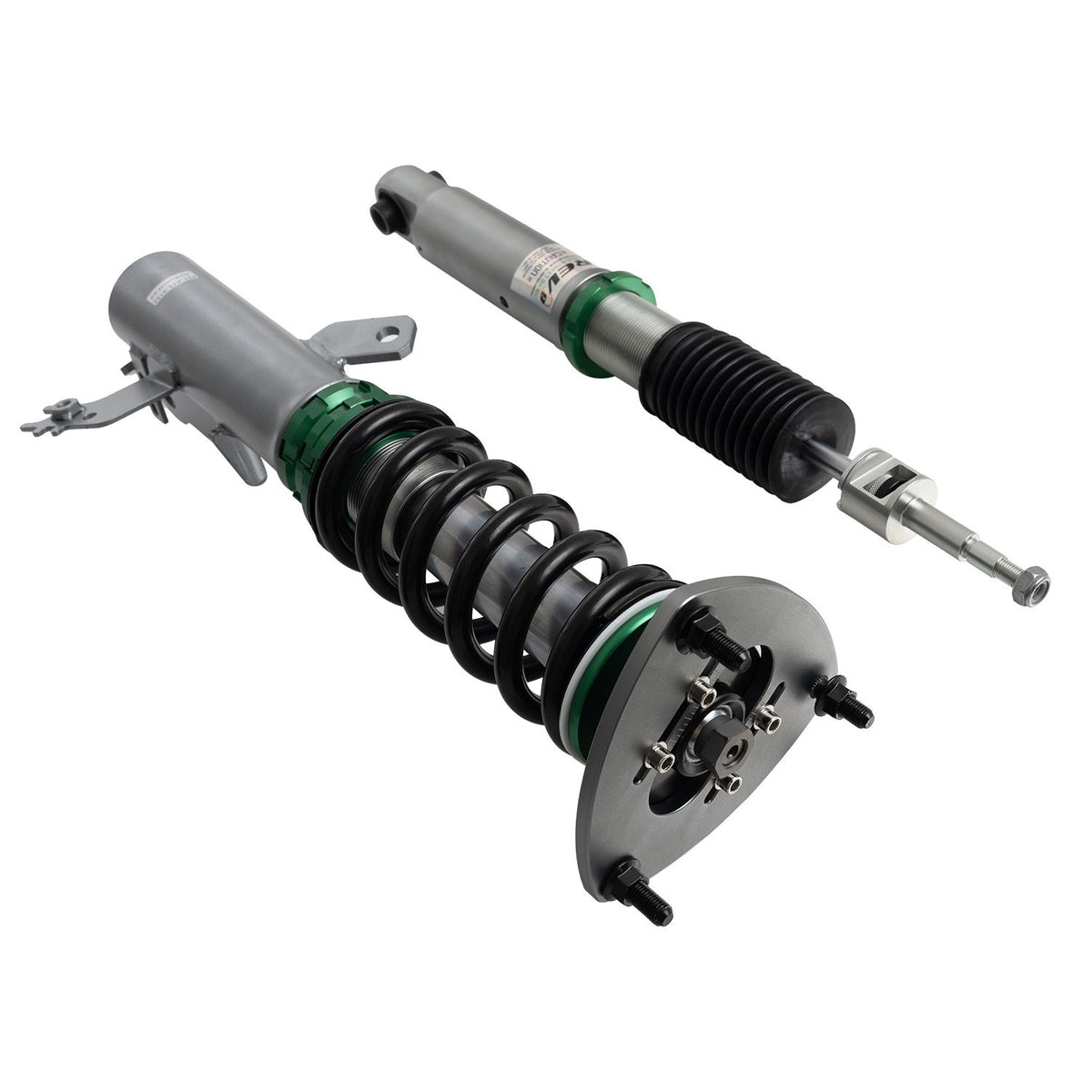

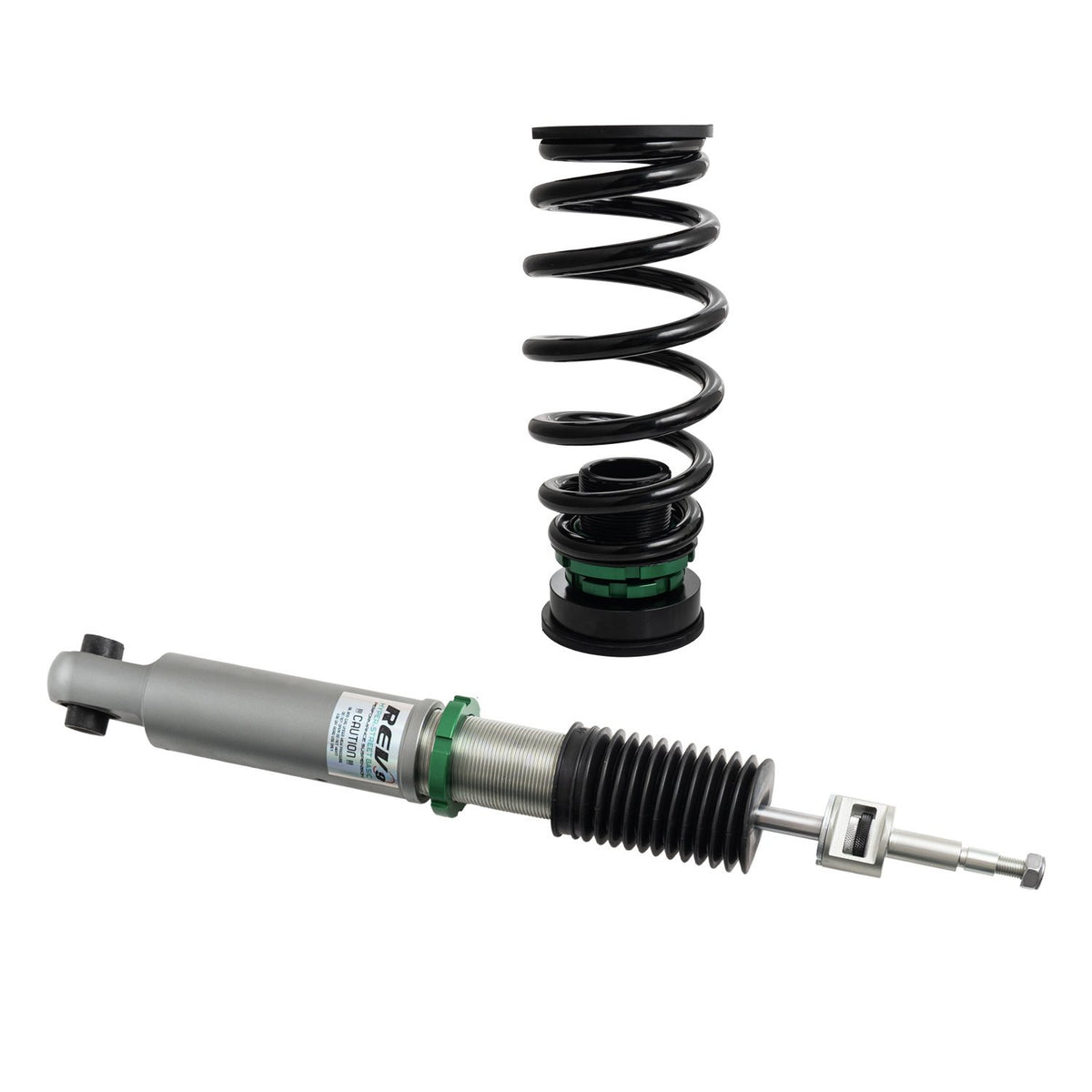

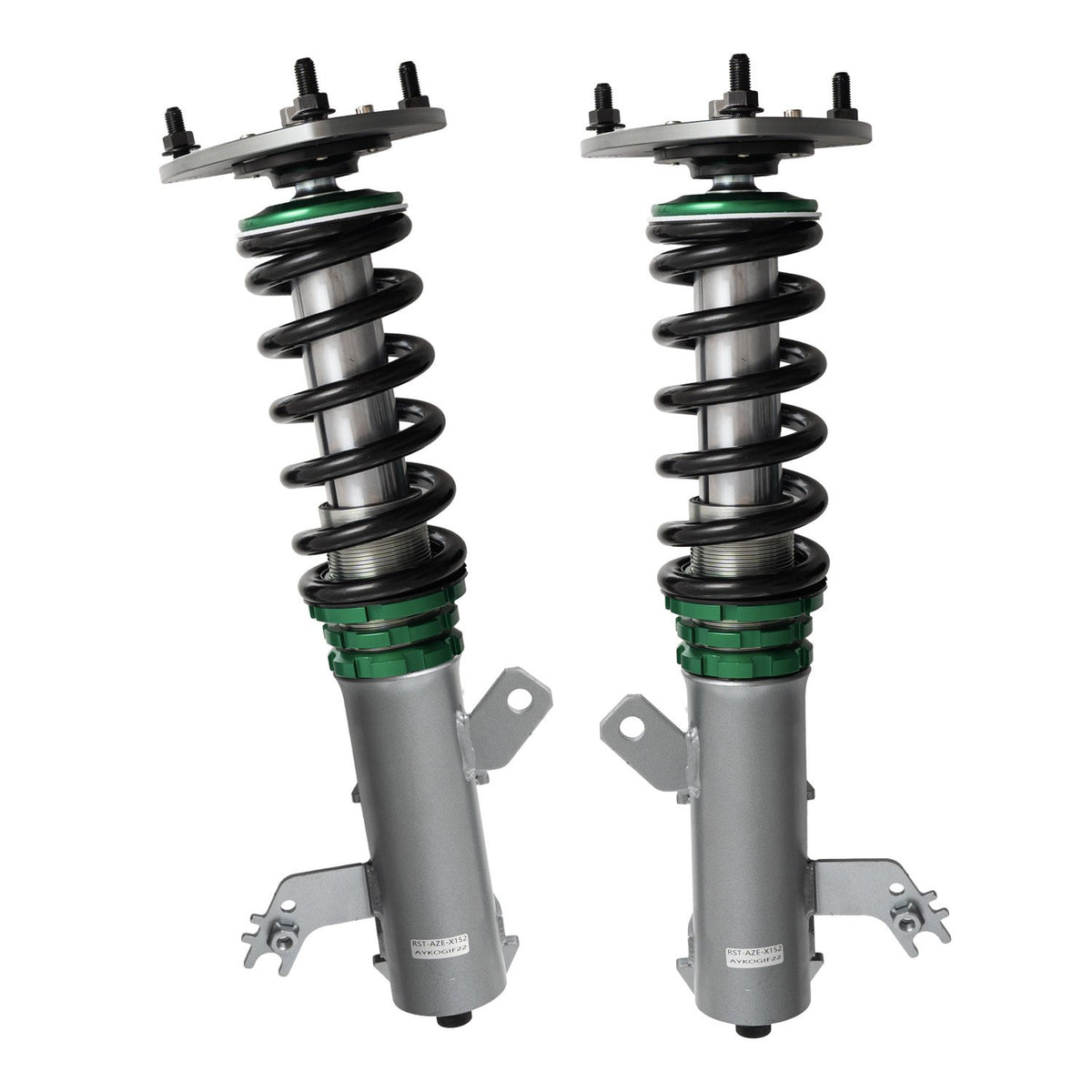

This application uses inverted mono-tube dampers at the front and standard mono-tube dampers at the rear. The inverted layout places the damper body differently from a conventional upright arrangement. Use the actual front and rear specifications when comparing kits, because the construction and mounting details are selected by application.

🎚️ Tune Height and Damping as a Complete System

Establish a usable ride height and the specified spring preload first, then complete the alignment before comparing damping settings. Small, repeatable adjuster changes make it easier to identify the response you prefer. Keep enough travel and clearance for the roads the vehicle uses, and evaluate the setup with consistent tire pressures and normal vehicle load.

🔧 Features and Hardware

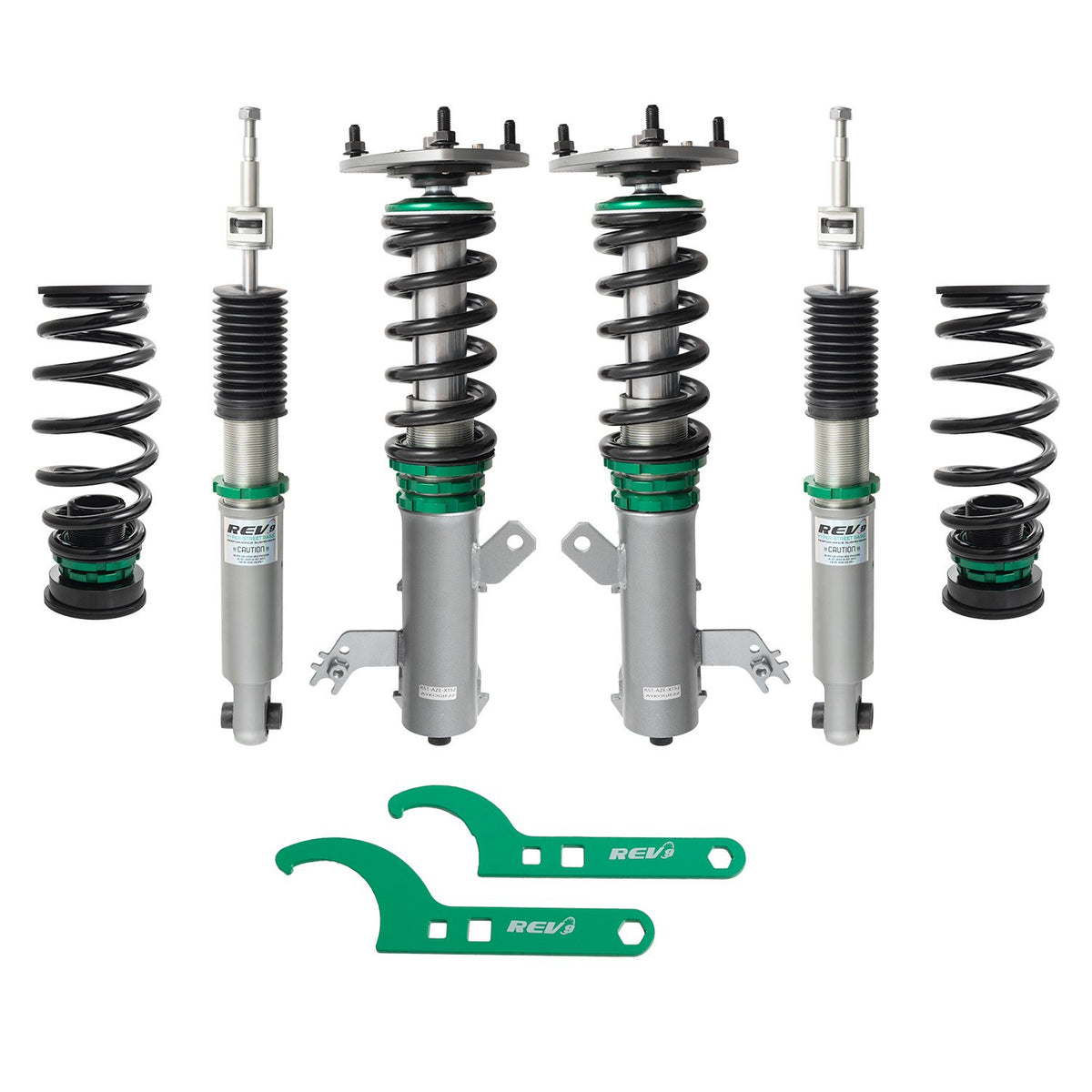

• Hyper-Street 3 V2 coilover suspension package for the listed application.
• 32-level damping adjustment listed for this application.
• Adjustable ride-height setup, independent of the spring-preload setting.
• Application-specific front and rear spring rates and mount details shown below.
• Aluminum adjustment hardware described for the Hyper-Street 3 range.
• Supplied spring rates: 10 kg/mm (560 lbs/inch) front and 6 kg/mm (336 lbs/inch) rear.
• Front top mount: Yes, Camber Plate w/ Pillow Ball. Rear top mount: No, Re-use Factory Top Mount.

🔧 Spring and Mount Details for RST-AZE-X152_3

The RST-AZE-X152_3 specification lists 10 kg/mm (560 lbs/inch) at the front and 6 kg/mm (336 lbs/inch) at the rear. These are the spring rates supplied for this application, so they are more useful for comparing kits than a general “soft” or “stiff” label. Motion ratio, vehicle weight, tire construction, and damping also affect how the setup feels. The listed front camber plate provides an alignment adjustment point. Its usable range depends on the installation and vehicle clearances.

📋 Vehicle Fitment

• 2019 Lexus Es350 (GSV10)
• 2020 Lexus Es350 (GSV10)
• 2021 Lexus Es350 (GSV10)
• 2022 Lexus Es350 (GSV10)
• 2023 Lexus Es350 (GSV10)

Manufacturer application: Lexus ES350 (GSV10) 2019-2023

📏 Technical Specifications

🏁 About Rev9 Hyper-Street 3 V2

California-based Rev9 has been serving enthusiasts since 2010. Hyper-Street 3 V2 gives builders another step to consider in the Rev9 range, combining its application-specific inverted-front damper arrangement with 32-level damping adjustment and adjustable ride-height setup. Compare the actual spring rates and mounting hardware below to choose the right package for your Lexus Es350 build.

🛡️ One-Year Limited Manufacturer Warranty

Rev9 covers defects in materials and workmanship for one year from the original purchase date. Coverage applies to the original purchaser, is non-transferable, and requires proof of purchase. Manufacturer terms, exclusions, and installation/setup requirements apply. Read Rev9’s full coilover warranty terms.

❤️ Why Buy From SuspensionHouse

We started SuspensionHouse in 2014, and we’re enthusiasts just like you. We’re a small, family-owned business and an authorized Rev9 dealer, with a focus on fast shipping, helpful communication, and parts we’re excited to put on our own builds. Every order supports our family’s business. Thanks for checking us out and letting us be part of your build.

Part #: RST-AZE-X152_3
